127mm Width 152 Mesh Stainless Steel 304 or 201 Reverse Dutch Woven Wire Mesh for Plastic Extruder Filter Screen

Nama merek:	COMESH
Nomor Model:	CM-SM010
Moq:	2 m
harga:	USD 0.5 to 10 per meter
Kemampuan Penyediaan:	50000M per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

FDA

Bahan:

Baja Tahan Karat 304 atau 201

Jenis tenun:

tenunan belanda constrat

Jumlah mesh:

40 - 350

Diameter kawat:

0,27/0,4mm

Rentang lebar:

40mm - 230mm

Panjang:

10m

Kemasan rincian:

kertas tahan air per gulungan, dan kemudian kotak kayu di luar.

Deskripsi Produk

127mm Width 152 Mesh Stainless Steel Reverse Dutch Woven Wire Mesh For Plastic Extruder

Product Overview

Stainless steel reverse dutch wire mesh, also known as contrast type net, contrast seat mesh belt or Dutch cloth, is a high-performance filtration mesh woven by the reverse dutch technique with premium stainless steel wires. Its defining feature is the thicker weft wires and finer warp wires, creating a significant "contrast" in wire diameter and density between warp and weft, which delivers superior filtration accuracy and structural strength compared to standard square mesh.

Technical Specifications

Mesh/Inch	Wire Dia. (mm)	Width (mm)	Length (mm)
72/15	0.45/0.55	97-400	10/20
132/17	0.32/0.45	97-400	10/20
152/24	0.27/0.4	97-400	10/20
170/17	0.27/0.45	97-400	10/20
200/40	0.17/0.27	97-400	10/20
260/40	0.15/0.25	97-400	10/20

Applications

Rubber industry
Plastic industry
Oil industry

Packaging

Waterproof paper bag per roll, and then wooden case outside. Customized packaging available upon request.

Delivery Options

Available shipping methods include sea, air, or express carriers (DHL, TNT, FEDEX, SF, UPS, etc.). DDP service is also available.

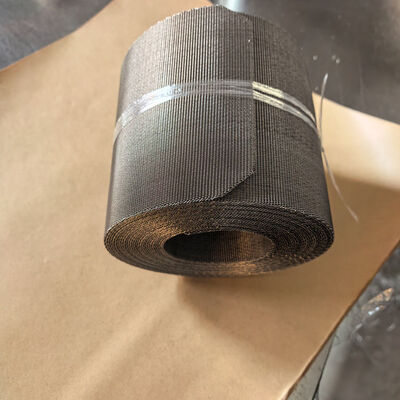

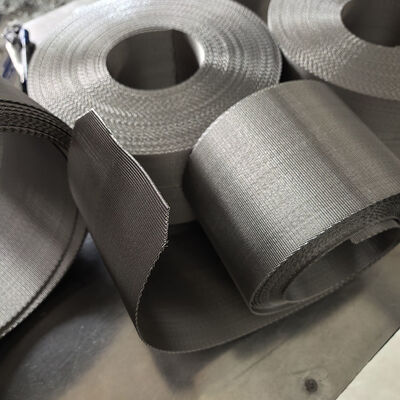

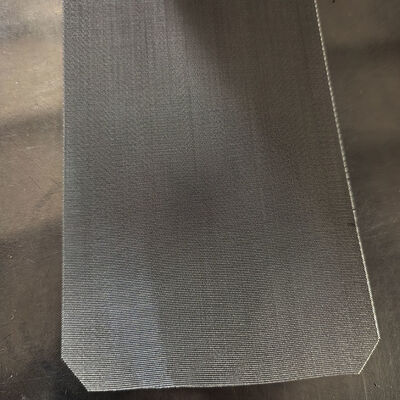

Product Images
