120T 127cm Width White Color Polyester Screen Printing Mesh

Nama merek:	COMESH
Nomor Model:	CM-P003
Moq:	15m
harga:	USD 0.85 to 22 per meter
Ketentuan Pembayaran:	D/A, D/P, T/T, Western Union, L/C
Kemampuan Penyediaan:	100000m per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

FDA

Bahan:

poliester

Warna Umum:

Putih, Kuning, Hitam

lebar:

100cm 127cm 145cm 148cm 165cm 220cm 260cm 310cm 360cm

Panjang:

30 m atau 50 m per satu gulungan

Jumlah mesh:

25 30 40 50 60 80 100 110 120 135 150 160 180 190 200 230 250 300 350 380 400 420 500 dst

Bukaan:

25 hingga 740 mikron

Diameter benang:

55 hingga 250 mikron

Mencicipi:

Tersedia

Kemasan rincian:

tabung kertas dan tas PP per satu gulungan, dan kemudian kotak kayu atau karton di luar.

Menyoroti:

white polyester screen printing mesh

127cm wide screen printing mesh

120T polyester mesh for printing

Deskripsi Produk

120T 127cm Width White Color Polyester Screen Printing Mesh

1. Main Specifications and Application Scenarios

Mesh Count Range	Applicable Scenarios	Typical Substrates
20 - 80 mesh	Thick ink layer, large-area printing (textiles, advertising inkjet printing)	Fabric, lightbox fabric, metal plate
100 - 200 mesh	General packaging, plastic casing, glass printing	Cardboard boxes, acrylic, glass cups
250 - 350 mesh	Fine patterns, halftone printing, PCB circuitry	Mobile phone cases, membrane switches, circuit boards
380 - 420 mesh	Microelectronics, solar cells, touch screens	Silicon wafers, ITO conductive films

2. Core Performance Advantages

1) Low Elongation + High Tensile Stability: Polyester's elastic modulus is much higher than nylon's, resulting in low elongation after stretching. It is less prone to loosening during long-term printing, ensuring extremely high registration accuracy, making it suitable for high-precision printing on PCBs, electronic panels, etc.

2) Chemical and Environmental Resistance: Resistant to weak acids, organic solvents, and water; extremely low hygroscopicity; superior high-temperature resistance compared to nylon; less prone to deformation during outdoor or drying processes.

3) Uniform Mesh Size: Monofilament plain weave + precision setting ensures consistent openings, uniform ink transfer, and sharp edges.

High Cost-Effectiveness: Lower cost than stainless steel mesh, longer lifespan than ordinary nylon mesh, suitable for mass production.

3. Production Process and Standards

1) Raw Materials and Weaving: High-purity polyester monofilaments are used (to avoid uneven pore size caused by multiple filaments), with plain weave being the mainstream method; Warping → Weaving → Washing and degreasing → High-temperature heat setting (to eliminate internal stress and improve tension stability) → Slitting, inspection, and packaging;

2) Specifications: Mesh count (threads per inch) is the core, commonly 18–420 mesh/inch (7–180 mesh/cm); Supporting parameters include filament diameter (μm), mesh size, mesh thickness, open area ratio, and tension value;

3) Colors: Standard white and yellow (UV resistant, suitable for photosensitive plate making), with custom colors such as black and orange also available; Yellow mesh reduces halo during plate exposure and improves the clarity of fine lines and dots.

4. Product Shows :

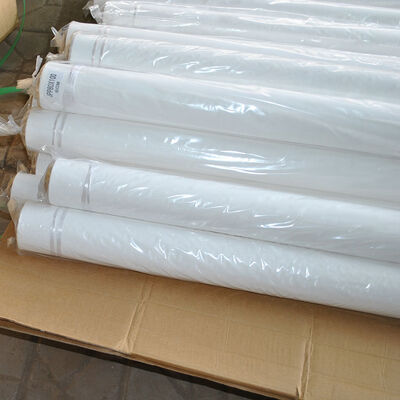

120T 127cm Width White Color Polyester Screen Printing Mesh 0

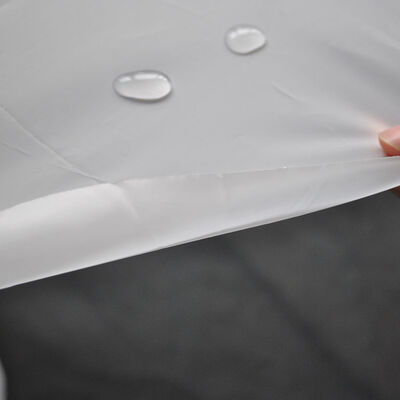

120T 127cm Width White Color Polyester Screen Printing Mesh 1

120T 127cm Width White Color Polyester Screen Printing Mesh 2
