Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer

Nama merek:	COMESH
Nomor Model:	MOBIL-34
Moq:	1 meter persegi
Ketentuan Pembayaran:	L/C, T/T, Western Union, ,Paypal, Jaminan Perdagangan
Kemampuan Penyediaan:	2000 Meter Persegi Per Kuartal

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Hebei, Tiongkok

Sertifikasi:

FDA

Bahan:

100% Poliester

Jenis tenun:

Tenunan Polos

Warna:

Putih, biru

Nama:

Sabuk Konveyor Jaring Poliester Tenun Polos yang Disesuaikan untuk Pengering Pengeringan Lumpur Pemb

Pengiriman:

dalam waktu 10 hari

Panjang:

Menurut melakukan permintaan Anda

Ukuran:

Disesuaikan ukurannya

Aplikasi:

Industri Kertas/Mesin Popok

Persendian:

Cincin pin, klip baja cincin spiral, jahitan tak berujung

Kemasan rincian:

Plastic Bag Inaide Dan Plywood Case Luar Atau Sesuai Kebutuhan Anda.

Menyoroti:

woven polyester mesh conveyor belt

polyester mesh belt for sludge dewatering

customized conveyor belt for paper making

Deskripsi Produk

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer

The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn, and weaving in 1:1 plain weave to get uniform and defined mesh opening, which makes the polyester mesh belts in high separation efficiency and optimum filtration effects. Furthermore, our linear screen filter belts are all being thermal setting to get high lateral stability and optimum running properties. Our Screen’s linear screen polyester mesh belts have a wide range of aperture size to meet the various application respectively, blue and white color both available.

Advantage:

1) Excellent chemical, thermal and high permeability for easy cleaning
2) Food approval: food grade
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions
4) Precise aperture to achieve excellent filtration results and efficiency
5) Smooth running properties
6) Mesh opening 0.4mm-5.0mm available
7) Excellent chemical stability, Synthetic Fiber Chemical Properties Table
8) Excellent durability
9) Max. Width 6.0 M with hot melt edges
10) Clipper seam, pin rings, spiral rings, endless connection type are all available.
11) Various and plenty stock for fast delivery to save your time

Specification:

Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
		(mm)		Density(No.s/cm)
		Warp	Weft	Warp	Weft
2-shed plain weaving	05802	0.75	0.8	4.7-5	4.8-5	940	20000
	05102	1	1	4.7-5.2	4.3-5	1600	15000
	06702	0.7	0.7	8	7	1600	11000
	07102	0.7	1	6.6-7	4.3-4.6	1100	15000
	08552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	09452	0.45	0.45	10	8.6	1600	16000
	09502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000

We are a professional manufacturer of polyester mesh belts, producing a wide range of specialized polyester mesh belts, including sludge dewatering mesh belts, paper forming mesh belts, paper drying mesh belts, tea withering mesh belts, belt filter press mesh belts, vacuum conveyor mesh belts, power plant desulfurization filter cloths, vacuum drying mesh belts, composite machine mesh belts, non-woven fabric mesh curtains, food drying conveyor mesh belts, and more. These products are widely used in MDF production, power plant desulfurization, tailings dry discharge, sewage treatment, juice pressing, and in industries such as papermaking, food, pharmaceuticals, and tea.

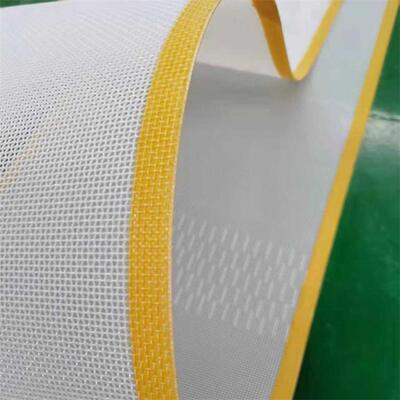

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer 2

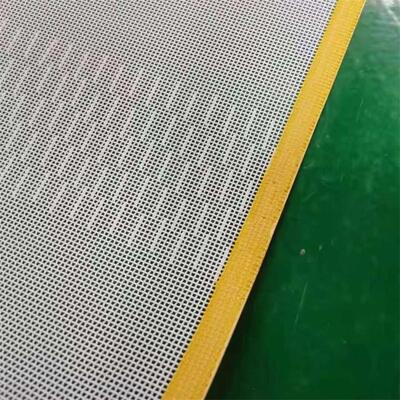

Customized Plain Woven Polyester Mesh Conveyor Belt for Paper Making Sludge Dewatering Dryer 3
