304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

Nama merek:	COMESH
Nomor Model:	CM-CB2511201
Moq:	2 m
harga:	USD35-55 per meter
Ketentuan Pembayaran:	D/A,D/P,T/T,Western Union,
Kemampuan Penyediaan:	500m per minggu

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

FDA

Bahan:

Baja Tahan Karat 304

Lebar:

800 mm, atau disesuaikan

Panjang:

6 m per gulungan, atau disesuaikan

Diameter Kawat:

1,5 mm, atau disesuaikan

Diameter batang:

6 mm, atau disesuaikan

Pitch spiral:

8 mm, atau disesuaikan

Nada rantai:

38,1 mm, atau disesuaikan

Kemasan rincian:

Tas PP di dalam, lalu kotak kayu di luar

Menyoroti:

304 stainless steel conveyor belt

chain driven freezer conveyor belt

balance weave spiral wire mesh

Deskripsi Produk

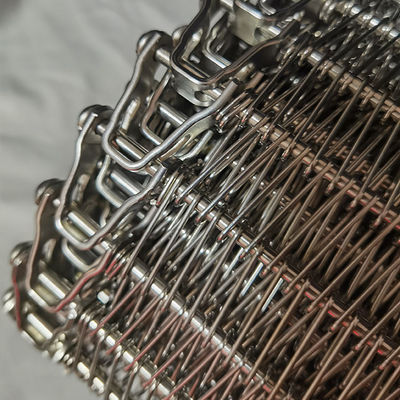

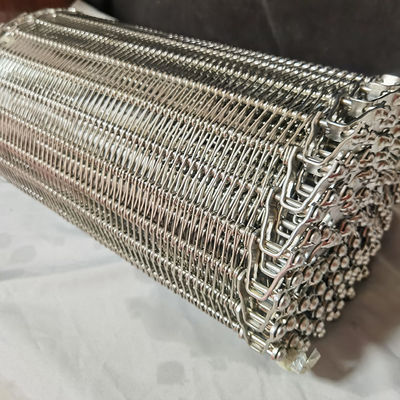

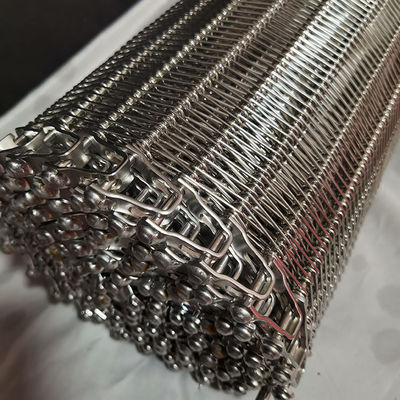

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.

Product Specifications

Material	Stainless steel 304, or customized
Width	800 mm, or customized
Length	6 m per roll, or customized
Wire Diameter	1.5 mm, or customized
Rod diameter	6 mm, or customized
Spiral pitch	8 mm, or customized
Chain pitch	38.1 mm, or customized

Available Materials

1) AISI 314 (1150°C)

2) SUS 310S (1090°C)

3) SUS 330 (1150°C)

4) SUS 304 (400°C)

5) SUS 316 (1000°C)

6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

7) SUS 321 (750°C)

8) SUS 410 (700°C)

9) SUS 430 (700°C)

10) Various metal materials as per your requirements

Key Features

Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design: Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven: Smooth and reliable movement along the conveyor path
Customization: Available in various sizes, wire diameters, and mesh configurations
