Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Nama merek:	PFM
Nomor Model:	PFM-CB356
Moq:	1 meter
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/C, T/T, Western Union ,, PayPal, jaminan perdagangan
Kemampuan Penyediaan:	300 meter per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Hebei, Cina

Sertifikasi:

SGS

Bahan:

Baja tahan karat, baja karbon

Pitch kawat datar:

25,4 mm

Pitch batang:

25,4 mm

Diameter batang:

5,0 mm

Ukuran kabel datar:

1.2mm*14.1mm

Mencicipi:

Tersedia

Kemasan rincian:

Kantong plastik di dalam dan kotak kayu lapis di luar atau sesuai kebutuhan Anda.

Menyoroti:

stainless steel 316 conveyor belt

honeycomb mesh conveyor belt

heavy duty wire mesh belt

Deskripsi Produk

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Description

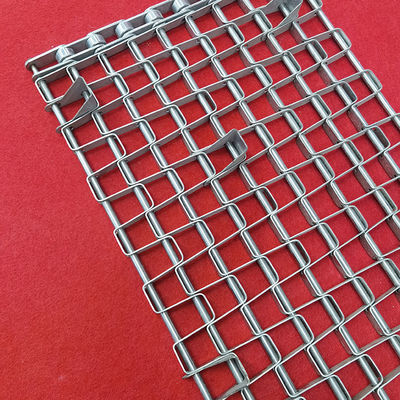

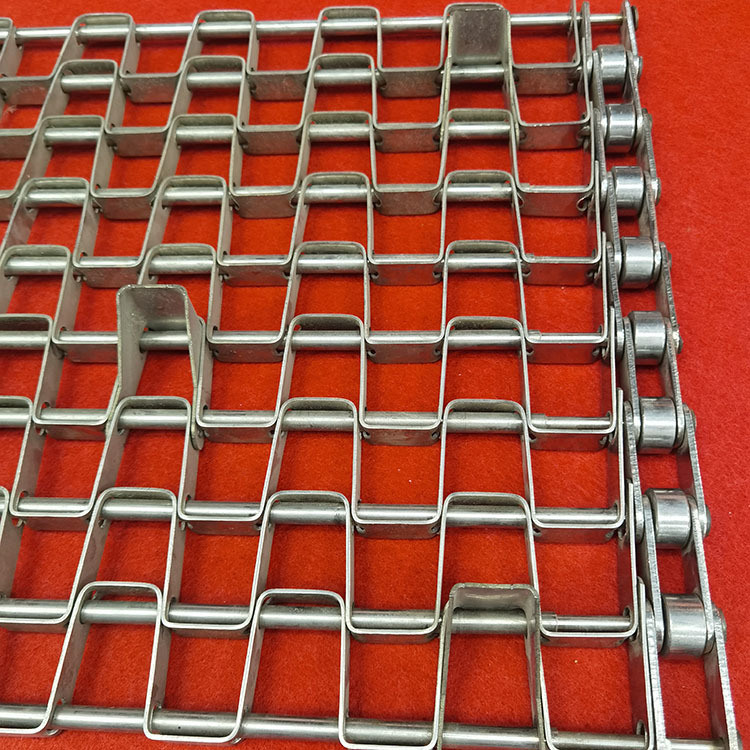

Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.

Specification

Material	stainless steel, carbon steel
Width	customized
Length	customized
Flat wire pitch	12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch	13.7, 19.05, 25.4, 27 mm
Rod diameter	3.0, 4.0, 5.0 mm
Flat wire size	1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm

Features

Positive sprocket drive ensures stable running
Larger open area provides high air permeability
Easy to wash and maintain
Smooth surface carries unstable products securely
Suitable for curved conveyor applications (CFW)

Applications

Conveyor machines
Frying facilities
Annealing furnaces
Refrigeration facilities
Cleaning machines
Drying ovens
Food transport
Baking
Cooling and freezing
Steaming and drying
